【Application Overview】

In modern marine offshore and vessel control systems, balancing compact spacing with precise execution is critical. The RunnTech W200 Compact Single-Axis Fingertip Joystick complements heavy-duty master controllers by providing operators with a highly delicate and accessible trimming interface.

This series is engineered for seamless integration into marine bridge consoles, operator chair armrests, and portable remote control units. It serves as an ideal solution for proportional velocity adjustments, constant tension trimming, and precise linear brake/clutch modulation in anchor windlasses and mooring winch applications.

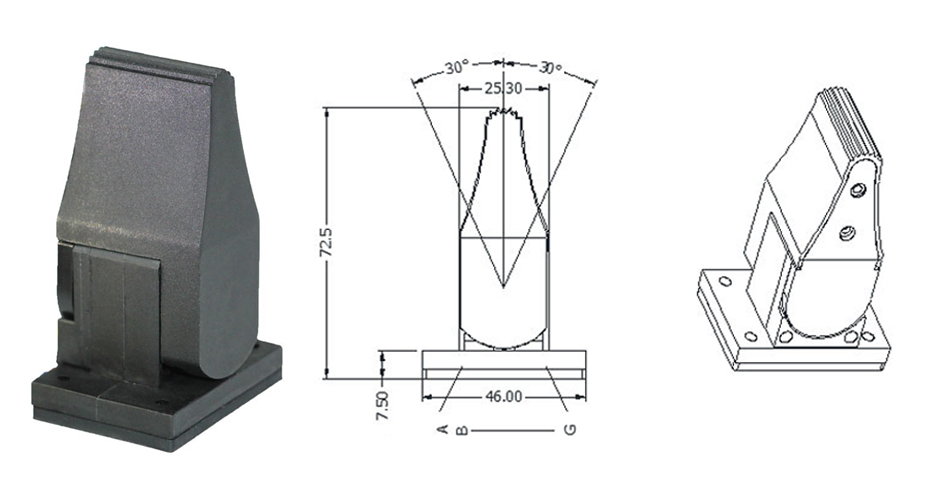

RunnTech W200 Compact Single Axis Fingertip Joysticks for Anchor & Mooring Winches

【Key Technical Features for Maritime Applications】

  • Sleek Fingertip Control: Specifically designed for flush panel-mount installation. The handle travels smoothly within a ±25° deflection range along the Y-axis , allowing operators to execute precise, infinite proportional adjustments with just the flick of a finger.

  • Maritime Durability: Achieves an IP64 protection rating above the panel with an operational temperature range spanning from -20°C to 80°C. It is built to withstand industrial dust, oil mist, high humidity, and salt-spray deck washdowns.

  • High-Precision & Drift-Free Output: Features an industrial-grade 10kΩ precision potentiometer with a ±5% resistance tolerance and a ±1% independent linearity tolerance. It outputs a stable 10%…50%…90% ratiometric voltage signal , ensuring zero signal drift over millions of cycles.

  • Versatile Mechanical Mechanisms (Tailored to Winch Logic):

    Spring Return (Self-Centering): Features an internal spring mechanism with an actuation force of 2N. It snaps back precisely to the neutral zero position upon release , functioning as a deadman safety device for dynamic drive controls.

  • Advanced Logic Integration: Integrates a sophisticated microswitch array. It triggers clear directional signals (Y+ / Y-) as soon as the lever leaves the center position (actuation angle ±3°). This significantly streamlines safety interlock programming for shipboard PLCs.
