Joystick | Kalmar Reach Stacker 920943.0058 Replacement

Key Features:

P/N: RT90JAM-4U-46R4GP (920943.0058);
3 axis, omenidirectional movement;
Self-centering operation;
Input voltage: 5Vdc;
Output voltage: 0.4…2.5…4.6Vdc;
Resistance: 5KΩ;
CE approved;
RoHS 2011/65/EU, Annex II, including (EU) 2015/863 compliant;

Description

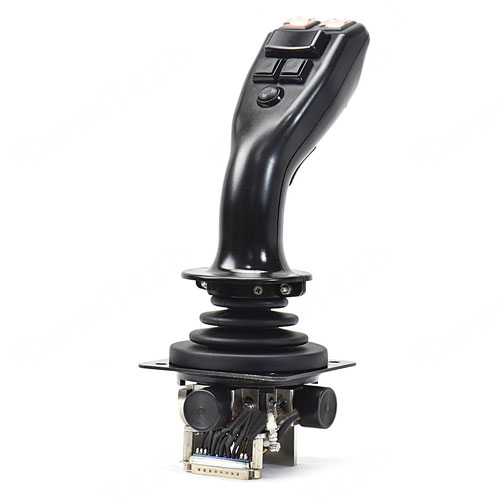

Multi-functional control joystick with 6 switches (2x illuminating, 3x pushbuttons and 1x deadman trigger) and 1x proportional thumbwheel joystick controller for Kalmar (920943.0058) container reach stacker port material handling equipment (potentiometers outside-mounted type) with standard DB25 Male analog 25-pin Connector for serial connections (RunnTech part number: RT90JAM-4U-46R4GP, Kalmar part number: Servo Control 920943.0058 or 9209430058).

Kalmar Joystick | 920943.0058 Diagram
