RunnTech 3 Axis Hall Effect Joystick Omnidirectional Control with 0.5 to 4.5V Analog Output

Part number: RT600-T-3-03-HV2-HD12-BT2-M11 (APEM HF45S11 Replacement)

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis control (z-axis with a twist knob);
• 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
• HV2: input: 5Vdc, output: 0.5…2.5…4.5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary switches;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

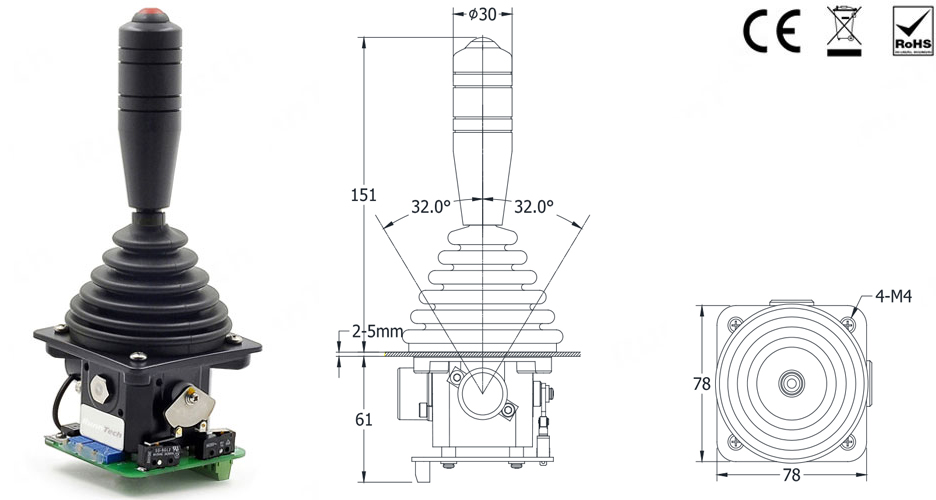

RunnTech 2 Axis Joystick Controller with 4…12…20mA Analog Output for Mining Equipment

Product configuration: RT100-T-3-I1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center when release joystick;
• 3: dual axis, omnidirectional movement;
• I1: input: DC24V, output: 4mA…12mA…20mA;
• 02(89): 2 directional contacts in each axis;
• HD1-BT1R: grip top with 1 momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis Spring-return Center-lock Joystick 4…20mA Output for Cabe Laying System

Part number: RT100-TS-2-I1(10K)-02(89)-HD5-M1

• RT100: RunnTech 100 series multi-axis joystick;
• TS: spring-return to center with center-lock;
• 2: dual axis movement (with cross limiter plate);
• I1: input: 24Vdc, output:4..12..20mA;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02(89): each direction with directional switch;
• HD5: grip with center-lock (lift to release the joystick);
• M1: mounting dimension 56x56mm, central hole: 63mm.

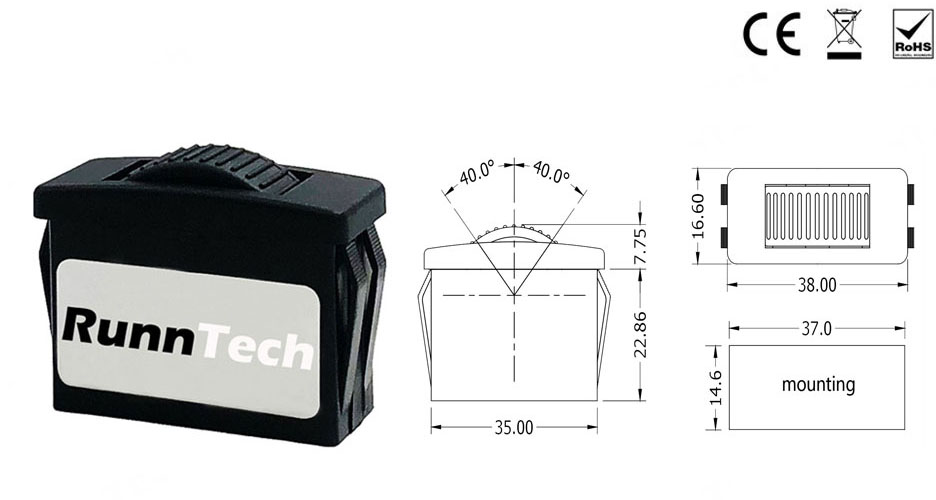

RunnTech W300L Self-centering 0 to 5Vdc Output Thumbwheel Controller Bilateral Control

Product configuration: W300L-T-HV1

• W300: RunnTech W300 series Hall effect thumbwheel;
• T: self-centering (automatically return to center);
• HV1: input: 5Vdc, output: 0Vdc…2.5Vdc…5Vdc;

RunnTech Single Axis +/-10Vdc Analog Output Industrial Joystick Controller for Crane Operation

Part number: RT100-T-2-V1(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick;
• T: spring-return to center position;
• 2: dual axis, cross direction movement (with cross limiter plate);
• V1: input: 24Vdc, output:-10..0..+10Vdc;
• 10K: 10K ohm precision potentiometer (with center tapped);
• 02(89): 2 directional switches in each axis;
• HD4-BT1R: grip top with 1 on/off pushbutton (safely trigger);
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 2 Axis Hall Effect Sensor Hand-operated Joystick Controller with Deadman Trigger

Product configuration: RT100-T-2-HV3-02(89)-HD15-BT1-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to central operation;
• 2: dual axis, cross direction movement;
• HV3: input: DC5V, output: 1.0V…2.5V…4.0V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD15-BT1: grip backside with deadman trigger;
• M1: mounting dimension 56x56mm, central hole: 63mm;

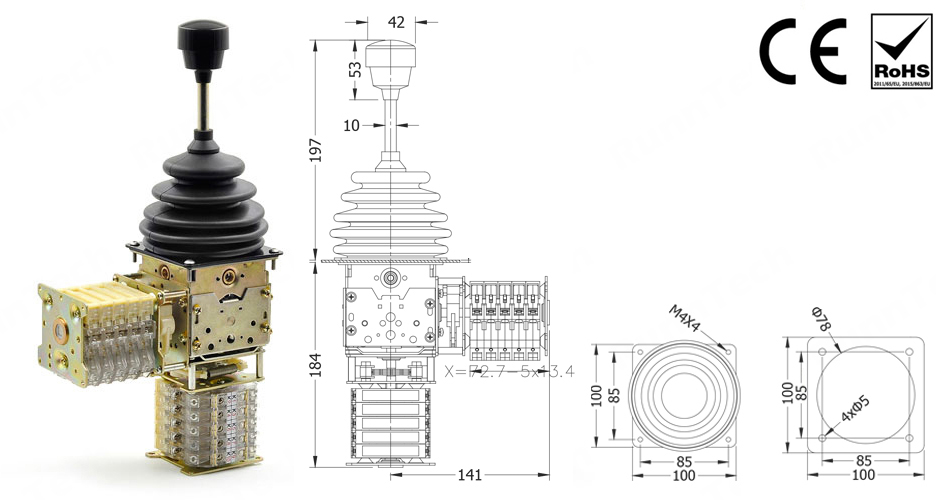

RunnTech 2 Axis Industrial Joystick Controller (Master Controller) for Crane Gantry Drive System

Product configuration: RT300-T-3-I-4(2)-HD2-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: self-centering movement operation;
• 3: 2 axis, full direction movement;
• I:switch assembled vertically;
• 4(2): 4 steps each direction, (2): contact arrangement;
• HD2: round ball shape joystick grip;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single-axis Industrial Joystick 4mA to 20mA Output with Center-lock for Crane Control

Product configuration: RT200-TS-1-I1(10K)-01(6)-HD6-M1

• RT200: RunnTech 200 series single axis joystick;
• TS: spring return to center and self-lock at center;
• 1: single axis movement;
• I1: input 24Vdc, output: 4mA…12mA…20mA;
• 10K: 2×5K Ohm conductive-plastic potentiometer with center tap;
• 01: 1 normally open (NO) switches contacts;
• 6: 1 NO contacts for forward and backward signal;;
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

2022 National Day Holiday Notice

Please be informed that RunnTech will temporarily break for 2022 National Day holidays.

RunnTech 3 Axis Fingertip Hall Effect Joystick with Square Limiter Plate for Agriculture Vehicles

Part number: RT600-T-3-03-HV1-HD12-BT2-M11 (APEM HF45S10 Replacement)

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis control (z-axis with a twist knob);
• 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary switches;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;
