RunnTech Single-axis Proportional Joy Stick with Trigger & Centre Tapped Potentiometer

Product configuration: RT100-T-1-V5(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: Off in the centre, spring return to centre from forward and reverse;
• 1: single axis (forward) and (reverse) movement;
• V5: input 24Vdc, output: 0Vdc~5Vdc~10Vdc;
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• HD7-BT1R: RunnTech HD7 handle with 1 trigger switch in top of handle;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Multi-axis Self-centering Joystick Controller for Crane and Hoisting Equipment

Product configuration: RT100-T-3-V2(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series joystick controller;
• T: spring return to center (self-centering);
• 3: dual axis free movement operation;
• V2: input: 24Vdc, output: +10Vdc~0~+10Vdc;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7-BT1R: grip with 1 momentary push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

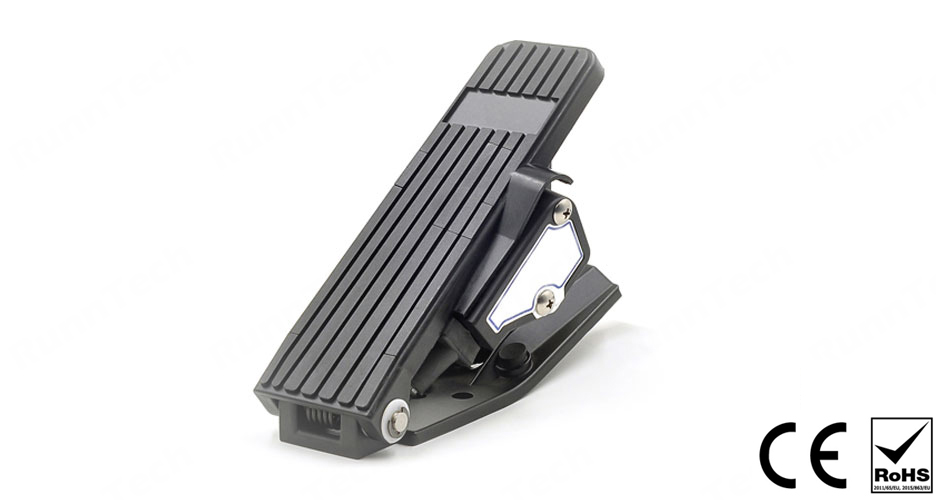

RunnTech F100 Seris Proportional Accelerator Pedal with 20K Precision Potentiometer

Product configuration: F100-T-P2(20K)-01(2)

• F100: F100 series proportional accelerator pedal;
• T: mechanical self-centering operation;
• P2: simple single side output (no dead band at the centre);
• 20K: 20K ohm precision potentiometer;
• 01: 1 normally open contacts;
• (2): contacts @ 3° to 25° (one switch signal when pedal is pressed);

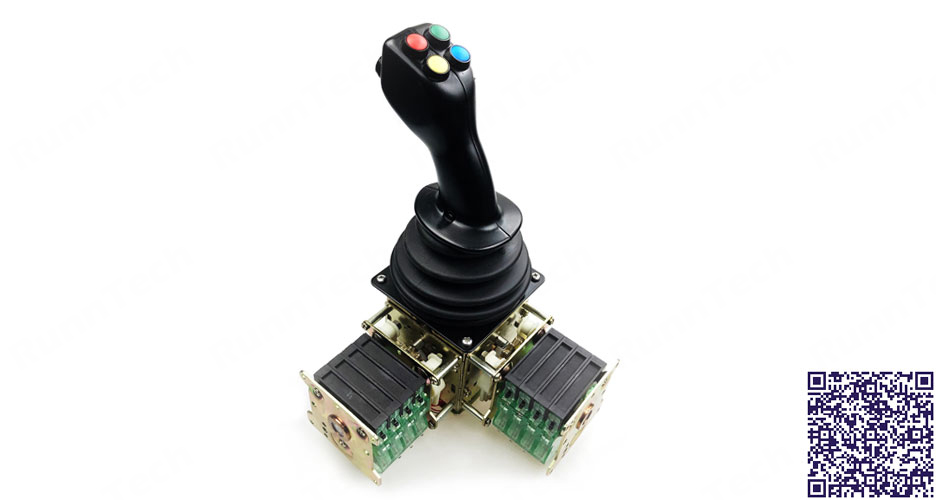

RunnTech Dual Axis 4 Steps Self-centering All Direction Movement Crane Control Joystick

Part number: RT300-TS-3-L-4(1)-HD39-M5

• RT300: RunnTech RT300 series joystick (master controller);
• TS: self-centering and self-lock at center;
• 3: 2 axis, all directions movement;
• L: switch assembled horizontal;
• 4(1): 8 steps in each axis, (1): switches contact arrangement;
• HD39: grip with latch (pull to release);
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single-axis Proportional Joystick Controller for Electronic Servo Valve System

Part number: RT02-MS-1-V1(10K)-02(89)-HD50-M6

• RT02: RunnTech 02 series joystick controller;
• MS: mechanical friction hold & Lock-in at centre (zero) position;
• 1: single axis, 2 directions movement;
• V1: input 24Vdc, output: -10~0~+10Vdc (proportional);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD50: grip with pull to release (mechanical lock-in at 0 position);
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech HD10 Series Ergonomical Joystick Grip with 6 Pushbuttons & Deadman Trigger

About RunnTech HD10 Series Ergonomical Joystick Grip RunnTech HD10 Series Joystick Grip handle is ergonomically designed, provides a high degree of comfort, highly integrated, multi-channel buttons control output and the handle can be installed with a variety of accessories: analog output of thumbwheel controller, self-resetting (momentary) push button, self-locking push button or rocker switch. RunnTech…

RunnTech Single-axis Proportional Joystick Lever with 24Vdc Input & 4~12~20mA Output

Part number: RT100-T-1-I1(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center;
• 1: single-axis movement;
• I1: input: 24Vdc, output: 4mA~12mA~20mA;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open directional contacts signal in each axis;
• 6: directional contact closed @ -32° to -3° and 3° to 32°
  (contact closed when joystick moved and released when joystick at center);
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual-axis Proportional Control Lever Joystick with 24Vdc Input & 0-10V Output

Part number: RT100-T-3-V5(10K)-01(6)-HD4-BT1R-M1

• RT100: RunnTech 100 series multi-axis joystick controller;
• T: mechanical spring return to center;
• 2: dual axis 360° free movement;
• V5: input: 24Vdc, output: 0Vdc~5Vdc~10Vdc;
• 10K: 10K ohm precision potentiometer;
• 01: 1 normally open directional contacts signal in each axis;
• 6: directional contact closed @ -32° to -3° and 3° to 32°
  (contact closed when joystick moved and released when joystick at center);
• HD4-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual Axis Analogue Output Joystick for PLC (Programmable Logic Controllers)

Product configuration: RT100-T-2-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center operation;
• 2: dual axis, cross operation (with cross limiting plate);
• HV1: input: 5Vdc, output: 0Vdc to 2.5Vdc (center) to 5Vdc;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: grip top with 1 momentary pushbutton;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

RunnTech RT100 Series Single-axis Industrial Joystick with Center Tapped Potentiometer

Product configuration: RT100-T-1-P1(10K)-02(89)-HD4-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring return to center;
• 1: single axis operation;
• P1: ordinary 2 directions output (with center tap);
• 10K: 10K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD104-BT1R: HD4 grip top with 1 momentary pushbutton;

• M1: mounting dimension: 56x56mm, central hole: 63mm;
