RunnTech Single Axis Friction Joystick to Control VSD (variable-speed drive) Boat Thruster

Product configuration: RT200-MS-V1(10K)-02(89)-HD5-M1

• RT200: RunnTech 200 series single-axis joystick for VSD control;
• MS: friction hold with zero interlock;
• V1: input: 24VDC, output: -10V – 0 – +10V (proportional);
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open directional contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD5: joystick grip with zero interlock (pull to release the joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 2 Axis -10V to 0V (center) to +10V Analog Joystick for Crane or Lifting Control

Product configuration: RT100-T-2-V1(10K)-02(89)-HD1-BT1R-M2

• RT100: RunnTech 100 series industrial joystick controller;
• T: spring return to center operation;
• 2: dual axis, cross operation (with cross limiting plate);
• V1: input: DC24V, output: -10V to 0V (center) to +10V analog output;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD1-BT1R: grip top with 1 momentary pushbutton;
• M2: mounting dimension 85x85mm, central hole: 63mm.

RunnTech 3 Axis 0.5V to 2.5V (center) to 4.5V Analog Output Industrial Sweepers Joystick

Product configuration: RT600-T-3-03-HV2-HD12-BT2-M11

• RT600: RunnTech RT600 series hall effect joystick;
• T: spring loaded return to neutral position;
• 3: 3 axis (XYZ) control;
• 03: 3 axis free movement;
• HV2: input: 5VDC, output: 0.5V to 2.5V (center) to 4.5VDC;
• HD12: RunnTech joystick grip;
• BT2: grip top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

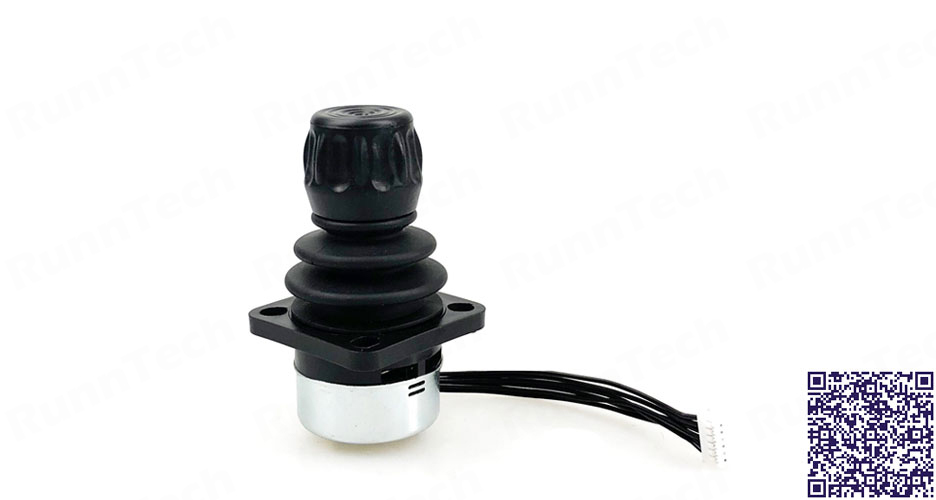

RunnTech 3 Axes Fingertip Hall Joystick for Teach Pendant Unit of Industrial Robotics

Product configuration: RT600-T-3-03-HV2-HD12-BT1-M11

• RT600: RunnTech RT600 hall effect joystick for teach pendant of industrial robotics;
• T: self-centering to neutral position;
• 3: 3 axis (XYZ) control;
• 03: 3 axes full direction, free movement;
• HV2: input: DC 5V, output: 0.5V to 2.5V (center) to 4.5V DC (proportional);
• HD12-BT1: RunnTech joystick grip with 1 momentary pushbutton;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;

RunnTech 2-axis Proportional 0-10VDC Output with 5VDC at the Centre Position Joystick

Product configuration: RT02-T-3-V5(10K)-03(589)-HD10b5-BT5②③⑤⑥G④R-M6

• RT02: RunnTech 02 series robust industrial joystick lever;
• T: mechanical self-centering operation;
• 3: dual axis full direction free movement;
• V5: input: DC 24V, output: 0~+10V;
• 10K: 10K ohm precision potentiometer;
• 03: 3 normally open contacts in each axis;
• 589: closed @ ±3° (central), +3° to 32° or -3° to -32° in each axis;
• HD10b5: ergonomic grip with person present switch;
• BT5②③⑤⑥G④R: 5 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single Axis Heavy Duty Industrial Analogue Joystick with 10K Potentiometer

Product configuration: RT200-МS-V5(10K)-03(589)-HD6-M1

• RT200: RunnTech 200 series joystick controller;
• MS: mechanical friction hold with zero interlock (pull to release);
• V5: 24VDC input, 0~+10V DC output;
• 03: 3 normally open contacts in each axis;
• 589: closed @ ±3° (central), +3° to 32° (forward) or -3° to -32°(backward);
• HD6: joystick grip with zero interlock (press to release joystick);
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Dual Axis Free Movement 6 Buttons 0-10V Analog Joystick for Garbage Truck

Product configuration: RT01-T-3-V5(10K)-02(89)-HD10b6-BT6-M4

• RT01: RunnTech 01 series industrial joystick controller;
• T: mechanical spring return to 0 position;
• 3: 2 axis free movement;
• V5: 24VDC input, 0~+10V DC proportional output;
• 10K: 2x5K ohm precision potentiometer in each axis;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b6: grip with 1 momentary trigger switch & 6 push button;
• M4: mounting dimension 64x64mm, central hole: 83mm.

RunnTech 2-axis Self-centering Ergonomic Proportional Flight Simulator Industrial Joystick

Product configuration: RT02-T-2-V3(10K)-02(89)-HD9-BT4⑥R④G①Y②B-M6

• RT02: RunnTech 02 series robust joystick controller;
• T: mechanical self-centering operation;
• 2: dual axis cross direction movement (with plus limiter);
• V3: input: DC 24V, output: -5V~0~+5V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32° in each axis;
• HD9: ergonomic grip with momentry pushbuttons;
• BT2⑥R④G①Y②B: 4 momentary pushbuttons;
• M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Single Axis 0 to 10V Analog Ouput Center Tap Precision Potentiometer Joystick

Product configuration: RT200-М-V5(10K)-03(589)-HD7-ВТ1-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction hold operation;
• V5: 24VDC input, 0~+10V DC output;
• 03: 3 normally open contacts in each axis;
• 589: closed @ ±3° (central), +3° to 32° (forward) or -3° to -32°(backward);
• HD7: joystick grip, top with 1 push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech 3 Axis Joystick with Rotating Knob for FlexPendant (TPU or Teach Pendant Unit)

Product configuration: RT600-T-3-03-HV5-HD12-M11

• RT600: RunnTech RT600 series contactless hall effect joystick;
• T: self-centering (automatically return to center);
• 3: 3 axis (XYZ) control;
• 03: 3 axis full direction, free movement;
• HV5: input: DC 5V, output: DC 1.1V~2.5V~3.9V (proportional);
• HD12: RunnTech joystick grip model;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;
