RunnTech Multi Axis CANbus Output with Deadman Button & Cobra Head Joystick

Product configuration: RT02-T-3-02(89)-HD10b4-BT4-②④G③⑤R-CAN.2.0-M6

• T: spring self-resetting operation;
• 3: dual axis, full direction free movement control;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b4: RunnTech "Cobra Head″ grip with deadman button;
• BT4: 4 self resetting push button;
• CAN 2.0: CANbus 2.0 output protocal;
• M6: mounting dimension: 76x76mm, central hole: 92mm;

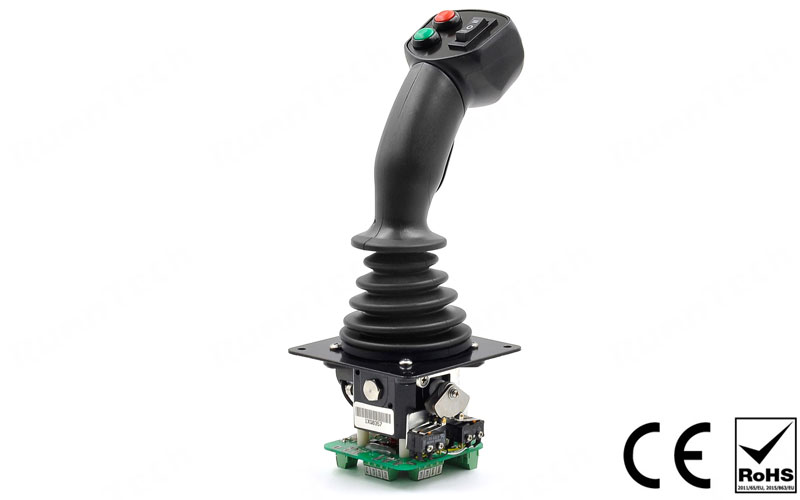

RunnTech Spring Return to Middle Position, -10V Analog Output Joy Stick Controller

Product configuration: RT100-T-2-V1(10K)-02(89)-HD10b4-BT2④②R-BS2⑤③BL-M7

• RT100: RunnTech 100 series industry joystick controller;
• T: mechanical spring return to center;
• 2: dual axis, cross direction movement operation;
• V1: DC24V, output:-10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b4: RunnTech HD10 joystick grip;
• M7: mounting dimension 85x85mm, central hole: 80x80mm.

RunnTech Dual Axis 24V Input Dual 10V Output with Push Buttons Joystick Lever

Product configuration: RT100-T-3-V2(10K)-02(89)-HD10b2-BT1③G-BS1②R-M7

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center;
• 3: dual axis, full direction free movement;
• V2: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b2: grip with deadman & 2 button;
• M1: mounting dimension: 56x56mm, hole: 63mm.

RunnTech Single Axis 10K Precision Potentiometer Joystick Control Lever

Product configuration: RT100-T-1-P1(10K)-02(89)-HD4-BT1-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center;
• 1: single axis operation;
• P1: simple 2 directions output;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech HD4 joystick grip;
• BT1: 1 self-resetting push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

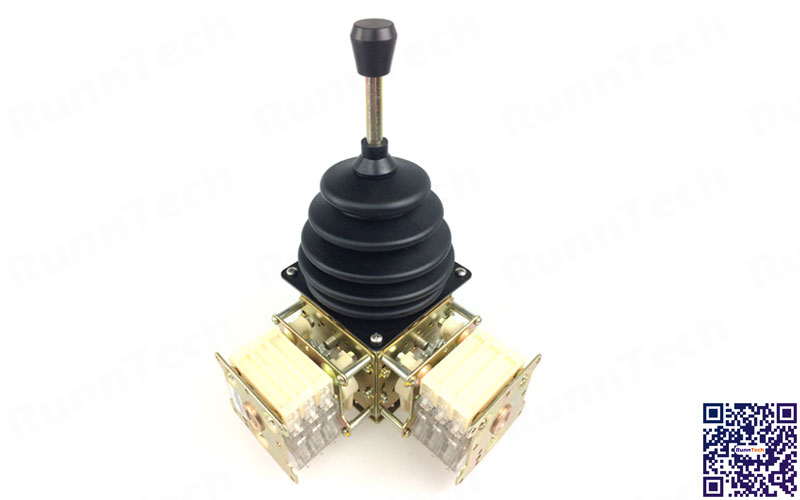

RunnTech Multi-axis 4 Steps Joystick with Latch Mechanical Zero Interlock for Crane

Product configuration: RT300-T-2-I-4(2)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring return to center operation;
• 2: 2 axis, cross direction;
• I: switch assembled vertical;
• 4(2): 4 steps each direction, (2): switches closed position;
• HD39: joystick handle with latch for mechanical zero interlock;
• M5: mounting dimension, 85×85, central hole 78;

Joystick 7919040041 for Linde Electric Forklift Truck

Fits to the following Linde models:
Linde 116 R14X/R16X/R17X/R17XHD, Linde 116-02 R14X/R16X/R17X/R17XHD
Linde 318 C90/5,C90/6,C90/7,C90/8, Linde 335-02 E14/E16/E18/E20-02
Linde 336-31 E25/E30, Linde 336-02/03 E20/E25/E30
Linde 346 E1820/E20P, Linde 359 H100/H120/H140/H150/H160/H180-T2/T3
Linde 386 E12/E14/E15/E16/E18/E20, Linde 391-01 H14/H16/H18/H20
Linde 392-01 H20/H25, Linde 393-01 H25/30/35
Linde 394-01 H40/H45/H50-500, Linde 396-01 H50/H60/H70/H80

RunnTech Crane Dual Axis Controller, Potentiometer Output, Deadman Trigger Button

Product configuration: RT300-T-2-L-P1(10K)-4(23)-HD7-BT1-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring return to center operation;
• 2: 2 axis, cross direction;
• L: switch assembled horizontal;
• P1: ordinary 2 direction output;
• 10K: 10K ohm precision potentiometer;
• 4(23): 4 steps each direction, (23): switches closed position;
• HD7: joystick handle, BT1: push button (dead man's button);

RunnTech Multi-axis Crane Control Handle with Latch for Mechanical Zero Interlock

Product configuration: RT300-T-2-L-P1(10K)-4(23)-HD39-M5

• RT300: RunnTech RT300 series crane joystick (master controller);
• T: spring return to center operation;
• 2: 2 axis, cross direction;
• L: switch assembled horizontal;
• P1: ordinary 2 direction output;
• 10K: 10K ohm precision potentiometer;
• 4(23): 4 steps each direction, (23): switches closed position;
• HD39: joystick handle with latch for mechanical zero interlock;

RunnTech Analog ±10V Output Joystick Lever: RT100-T-3-V1(5K)-HD10a-M7

Product configuration: RT100-T-3-V1(5K)-HD10a-M7

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 3: dual axis, full direction free movement control;
• V1: input: DC24V, output: -10V…0…+10V;
• 5K: 5K ohm precision potentiometer;
• HD10a: RunnTech joystick grip handle without deadman trigger;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

RunnTech Single Axis, Friction Hold, Free Movement Joystick Control Lever

Product configuration: RT100-M-1-Y03(589)-X2(1)-HD7-M1

• RT100: RunnTech RT100 series joystick controller;
• M: friction hold operation;
• 1: single axis, 2 directions movement control;
• Y03(589): Y axis 3 directional switches signals;
• X2(1): X axis 2 steps movement;
• HD7: RunnTech joystick grip model;
• M1: mounting dimension: 56x56mm, central hole: 63mm.
