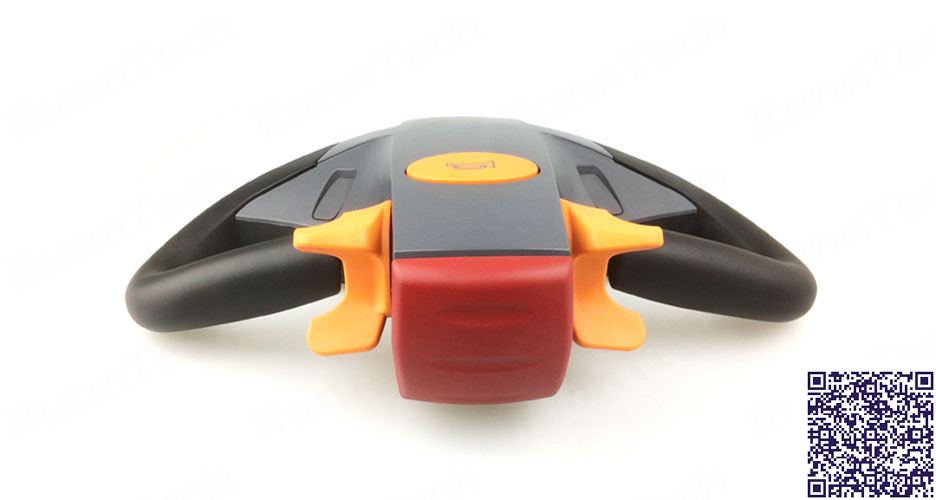

RunnTech Hall Effect Multi-function Steering for Electric Stacker, Trolleys or Drivetrain

Product configuration: H100-G-Q2-L-T

• H100: RunnTech H100 series Hall effect multi-function steering (tiller head);
• G: turtle speed button;
• Q2: 2 rocker switch;
• L: horm button;
• T: speed controller (throttle);
• Input voltage: 5 to 48VDC;
• RunnTech H100 series multi-function steering mainly used in electric-vehicle applications, like: electric pallet truck, pedestrian industrial truck, transport trolleys, cleaning machinery, etc.

RunnTech 2-axis Hall Effect DC5V Friction Clutch Operation Joystick Lever for Draw-works

Product configuration: RT100-M-1-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• M: friction clutch operation;
• 1: single axis movement control;
• HV1: input: DC5V, output: 0…2.5…5V rail to rail;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech 1-axis Friction Clutch (holds position) Potentiometer Joystick Control Lever

Product configuration: RT100-M-1-P2(10K)-02(12)-HD4-M1

• RT100: RunnTech RT100 series joystick controller;
• M: friction clutch (holds position) ;
• 1: single axis operation;
• P2: ordinary one direction output;
• 02: 2 normally open contacts in each axis;
• 12: contacts @ -32° to -29° or -29° to +32°;
• HD4: grip Lock-in at centre (zero) position;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

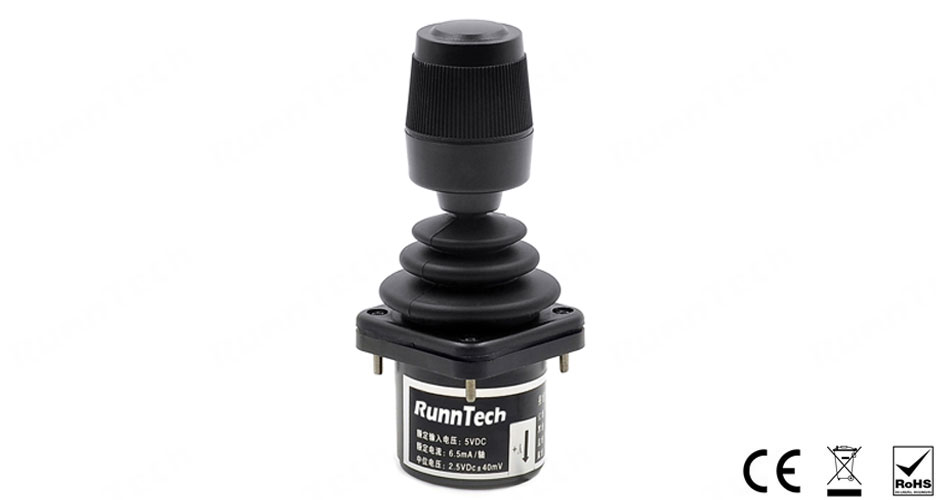

RunnTech 3-Axis DC 5V Finger-positioning Joystick for Medical or Optical Instrument

Product configuration: RT600-T-3-03-HV1-HD12-BT2

• RT600: RunnTech RT600 series hall miniature joystick controller;
• T: spring return device (automatically return to center);
• 3: 3 axis control;
• 03: Y and X axis full direction, free movement;
• HV1: input: DC 5V, output: DC 0V…2.5V…5V (rail to rail);
• HD12: RunnTech joystick grip handle model;
• BT2: 2 momentary thumb push buttons;

RunnTech Hall Effect DC5V 2 Axis Self Centering Joystick Lever for CNC Turning Machinery

Product configuration: RT100-T-3-HV1-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: spring return to center when release operation;
• 3: dual axis, free movement operation;
• HV1: input: DC5V, output: 0…2.5…5V rail to rail;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech DC24V Single Axis 2x5K Potentiometer Joy Stick for Rolling Mill Control Desk

Product configuration: RT100-T-1-V2(10k)-02(89)-BT1-HD4-M1

• RT100: RunnTech RT100 series joystick controller;
• T: self-resetting operation;
• 1: Y axis movement;
• V2: input: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech joystick handle with 1 push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm.

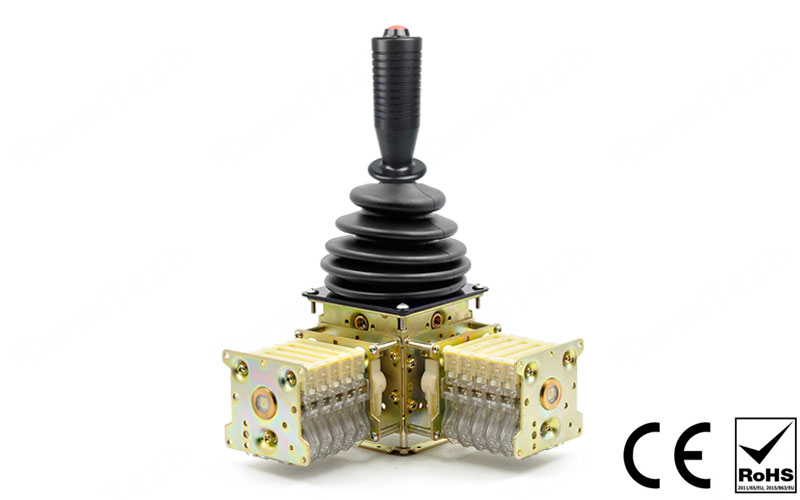

RunnTech Single Axis Frictional Movement 6 Steps Crane Hoist Lift Joy Stick Lever

Product configuration: RT300-MS-1-I-6(1)-HD6-M3

• RT300: RunnTech RT300 series crane joystick (master controller);
• MS: friction hold and self-lock operation;
• 1: single axis movement;
• I: switch assembled vertical;
• 6(1): 6 steps each direction, (1): closed position;
• HD6: RunnTech joystick handle with push to release button;
• M3: mounting dimension: 130x110mm, central hole: 64mm.

RunnTech Single-axis Friction Hold at Any Point Joystick Lever with 2x5K Potentiometer

Product configuration: RT100-M-1-I1(10K)-02(89)-HD1-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• M: frictional movement to both direction from center;
• 1: single axis operation;
• I1: input: DC24V, output: 4mA…12mA…20mA;
• 10K: 2*5K ohm precision center tapped potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• BT1R: one red momentary thumb push button;
• M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Self-return Analogue 4~20mA Output Joystick with Center Tap Potentiometer

Product configuration: RT100-T-2-I2(10K)-02(89)-HD7-BT1R-M1

• RT100: RunnTech 100 series industry joystick controller;
• T: joystick returns to center when handle is released (self-centering);
• 2: dual axis, cross limiting plate;
• I2: input DC 24V, output: 20mA…4mA…20mA;
• 10K: 2x5K Ohm conductive-plastic potentiometer with solid center tap;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD7: RunnTech HD7 grip with 1 push buttons;

Joystick Control Lever 7919040041 & 7919040042 for Linde Electric Forklift Truck

Fits to the following Linde models:
Linde 116 R14X/R16X/R17X/R17XHD, Linde 116-02 R14X/R16X/R17X/R17XHD
Linde 318 C90/5,C90/6,C90/7,C90/8, Linde 335-02 E14/E16/E18/E20-02
Linde 336-31 E25/E30, Linde 336-02/03 E20/E25/E30
Linde 346 E1820/E20P, Linde 359 H100/H120/H140/H150/H160/H180-T2/T3
Linde 386 E12/E14/E15/E16/E18/E20, Linde 391-01 H14/H16/H18/H20
Linde 392-01 H20/H25, Linde 393-01 H25/30/35
Linde 394-01 H40/H45/H50-500, Linde 396-01 H50/H60/H70/H80
