RunnTech Single-axis Friction Hold 4 to 20mA Joystick for Proportional Valves Hoist Crane

News & Events
Product configuration: RT200-MS-I2(10K)-02(89)-HD6-M1
  • RT200: RunnTech 200 single axis joystick;
  • MS: friction clutch (holds position) and zero interlock;
  • I2: input DC24V, output: 20mA…4mA…20mA;
  • 10K: 10K ohm precision potentiometer;
  • 02: 2 normally open contacts in Y axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD6: joystick grip with zero interlock (press to release joystick);
  • M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Friction Hold 4 to 20mA Joystick for Proportional Valves Hoist Crane

RunnTech Dual-axis 4 to 20mA Output Proportional Directional Valve Joystick Lever

News & Events
Product configuration: RT100-T-3-I1(10K)-02(89)-HD8-M1
  • RT100: RunnTech 100 series industrial joystick;
  • T: joystick returns to center when grip is released (self-centering);
  • 3: dual axis free movement;
  • I1: input DC 24V, output: 4mA…12mA…20mA;
  • 10K: 10K Ohm conductive-plastic potentiometer;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD8: RunnTech HD8 grip;
  • M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Dual-axis 4 to 20mA Current Output Joystick Lever for Proportional Directional Valve

RunnTech Single-axis Friction Clutch Mine Hoist VFD Control Joystick 10V Analog Output

News & Events
Product configuration: RT200-MS-V2(10K)-02(89)-HD5-M1
  • RT200: RunnTech 200 series single-axis joystick;
  • MS: friction clutch with zero interlock (pull to release);
  • V2: 24VDC input, +10V…0…+10V proportional output;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD5: joystick grip with zero interlock (pull to release);
  • M1: mounting dimension: 56x56mm, central hole: 63mm;

RunnTech Single-axis Friction Clutch (no centering) Joystick 10V Analog Output for Mine Hoist AC Variable Frequency Speed Control System

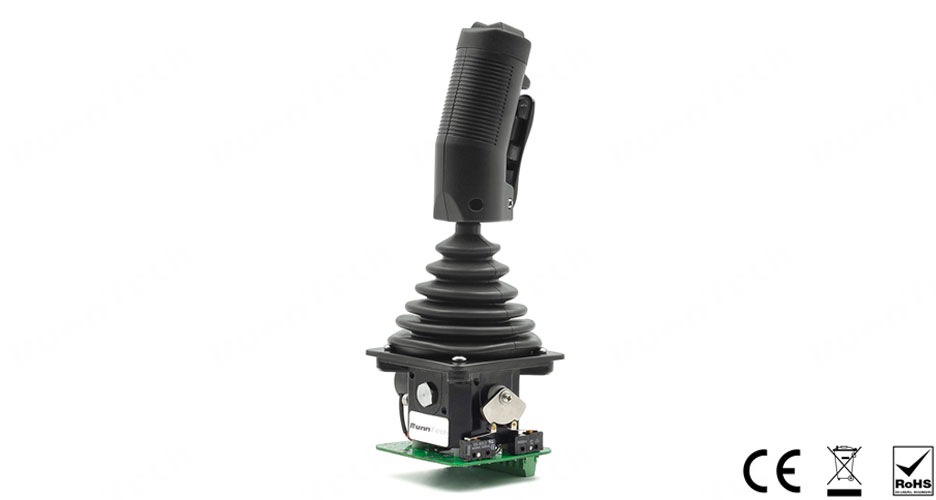

RunnTech Single-axis Hall Scissor Lift Proportional Control Joystick with Deadman Trigger

News & Events
Product configuration: RT100-T-1-HV2-02(89)-HD15-BT1-QTOT-M1
  • RT100: RunnTech 100 series joystick control lever;
  • T: spring return to central operation;
  • 1: single axis movement (default: Y axis);
  • HV2: input: DC5V, output: 0.5v~2.5V~4.5V;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD15: RunnTech joystick HD15 grip handle with deadman trigger;
  • M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Single-axis Hall Effect Joystick with Deadman Trigger for Scissor Lift Proportional Control

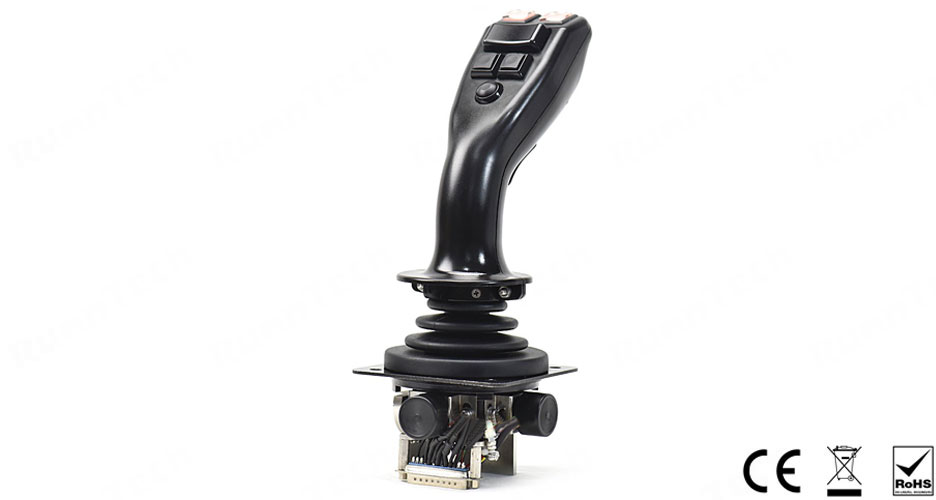

RunnTech Self-centering Joystick for Precision Control of Forestry or Mining Equipment

News & Events
Product configuration: RT02-T-3-V1(10K)-02(89)-HD10b8-BT2③②R-W100L-HV2-M6
  • RT02: RunnTech 02 series robust joystick controller;
  • T: mechanical spring return to center (self-centering);
  • 3: dual axis 360° free movement;
  • V1: input: DC 24V, output: -10V…0…+10V;
  • 10K: 10K ohm precision potentiometer;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD10b8: grip with 2 pushbuttons, 1 deadman trigger and 1 thumbwheel;
  • W100L-HV2: hall effect thumbwheel, output: 0.5-2.5-4.5V;
  • M6: mounting dimension: 76x76mm, central hole: 92mm.

RunnTech Dual-axis Self-centering Joystick for Precision Control of Forestry or Mining Equipment

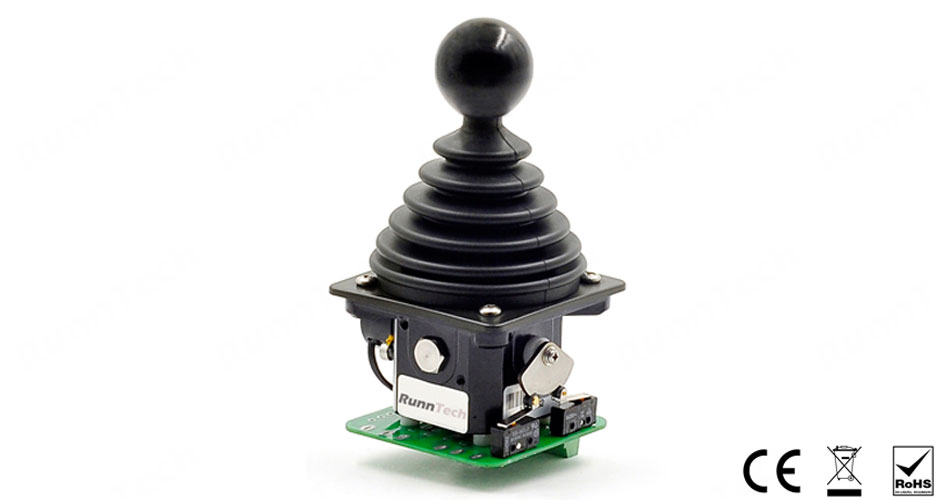

RunnTech Multi-axis Proportional Dual 10V Joystick for Control of Electro-hydraulic Valves

News & Events
Product configuration: RT100-T-3-V2(10K)-03(589)-HD2-M1
  • RT100: RunnTech 100 series joystick controller;
  • T: mechanical spring return to handle centering;
  • 3: dual axis 360° free movement;
  • V2: input: 24VVDC, proportional output: +10V…0…+10V;
  • 10K: 10K ohm precision potentiometer;
  • 03: 3 normally open contacts in each axis;
  • 589: contacts @ -32° to -3°, -3° to +3° or +3° to +32°;
  • HD2: round ball shape joystick grip;
  • M1: mounting dimension 56x56mm, central hole: 63mm;

RunnTech Multi-axis Proportional Dual 10V Joystick with Ball Shape Grip for Control of Electro-hydraulic Valves

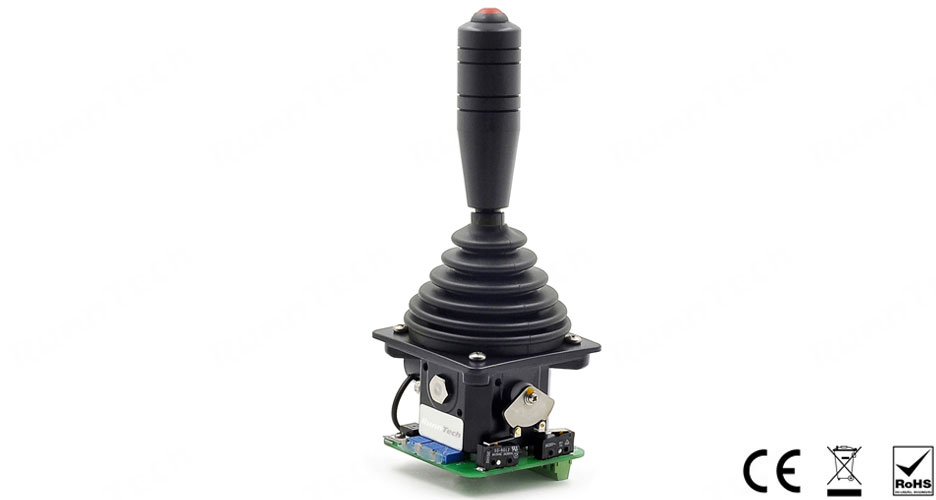

RunnTech Dual-axis Self-centering Joystick Control Lever with +/-5V Proportional Output

News & Events
Product configuration: RT100-T-3-V3(10K)-02(89)-HD1-BT1R-M1
  • RT100: RunnTech 100 series joystick controller;
  • T: mechanical spring return to center (self-centering);
  • 3: dual axis free movement operation;
  • V3: input: DC24V, output: -5V…0…+5V;
  • 10K: 10K ohm precision potentiometer;
  • 02: 2 normally open contacts in each axis;
  • 89: contacts @ -32° to -3° or +3° to +32°;
  • HD1-BT1R: grip with 1 momentary push button;
  • M1: mounting dimension 56x56mm, central hole: 63mm.

RunnTech Dual-axis Self-centering Joystick Controller with +/-5V Analog Proportional Output
