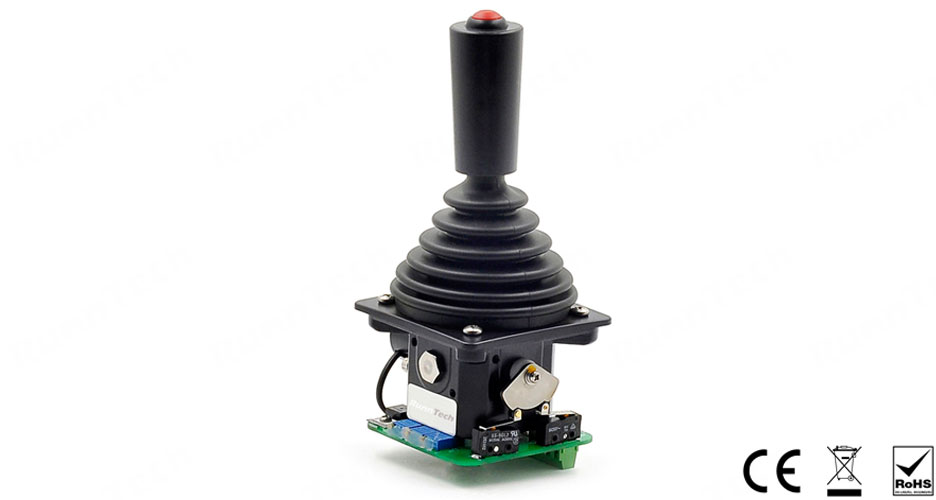

RunnTech Dual 5V Analog Output Potentiometer Joystick for Self-propelled Scissor Lift

Product configuration: RT100-T-1-V4(10K)-HD15-BT1-QTOT-M1

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 1: single axis movement (default: Y axis);
• V4: input: DC24V, output:+5V…0…+5V;
• 10K: 10K ohm precision potentiometer;
• HD15: RunnTech joystick HD15 grip handle with deadman button;
• M1: mounting dimension 56x56mm, central hole: 63mm;

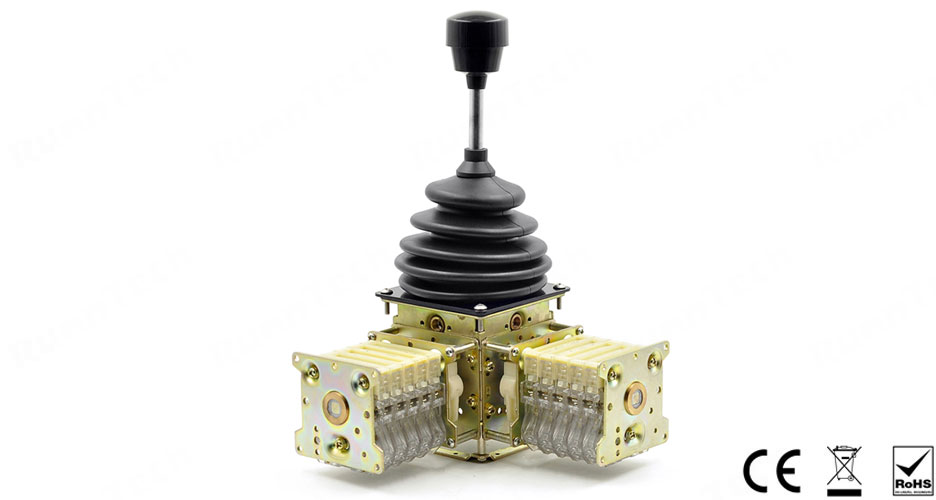

RunnTech Multi-axis Friction Hold Joy Stick Lever with 1 Push Button for Overhead Crane

Product configuration: RT300-M-3-L-4(1)-HD7-BT1-M5

• RT300: RunnTech RT300 series hoist joystick (master controller);
• M: friction hold operation;
• 3: 2 axis, free movement;
• L: switch assembled horizontal;
• 4(1): 4 steps each direction, (1): contacts arrangement;
• HD7-BT1: joystick handle top with 1 push button;
• M5: mounting dimension: 85x85mm, central hole: 78mm.

RunnTech Single-axis Friction Clutch Potentiometer Joystick Controller for Hoist Industry

Product configuration: RT200-M-P2(10K)-02(89)-HD4-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction hold with self lock;
• P2: ordinary 1 direction output;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD4: RunnTech joystick grip;
• M1: mounting dimension: 56x56mm, central hole: 63mm;

2017 Dragon Boat Festival Holiday Notice

2017 Dragon Boat Festival (Duanwu Festival), one of the most valuable holiday in Chinese community now is around the corner.

Please be informed that RunnTech office will temporarily break for holidays from 28^th May to 30^th May. All our staffs will resume to normal operation from 31^th May.

Happy Chinese Dragon Boat Festival!

RunnTech Multi-axis -5VDC & +5VDC Output with 6 Momentary Thumb Button Joystick

Product configuration: RT100-T-2-V3(10K)02(7)-HD10b6-BT6②③G④⑤Y⑥⑦R-M7

• RT100: RunnTech 100 series joystick control lever;
• T: spring return to central operation;
• 2: dual axis, cross direction movement control;
• V3: input: DC24V, output: -5V…0…+5V;
• 10K: 10K ohm precision potentiometer;
• HD10b: RunnTech joystick grip handle with deadman trigger;
• M7: mounting dimension 85x85mm, central hole: 80x80mm;

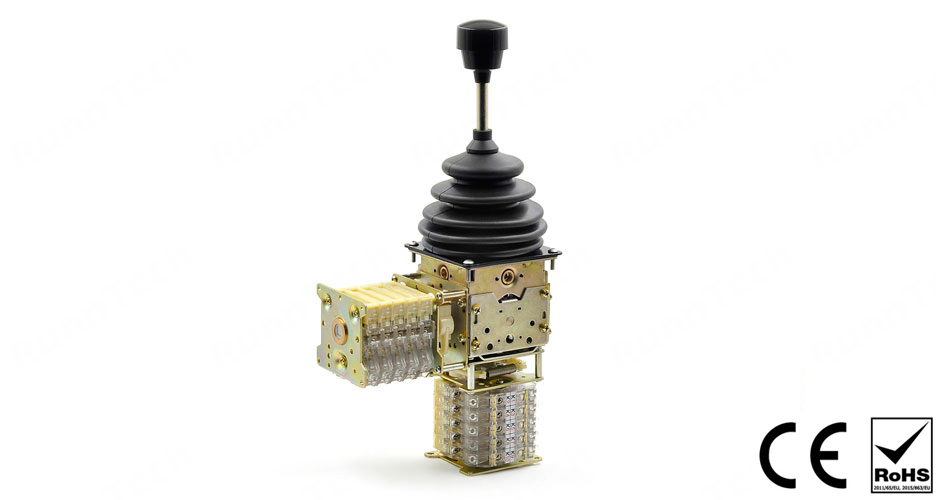

RunnTech Single-axis Self-centering Joystick Controller for Mining Hoist and Winches

Product configuration: RT300-TS-1-L-4(6)-HD39-M2

• RT300: RunnTech RT300 series crane joystick (master controller);
• TS: self-centering and lock-in at centre (zero) position;
• 1: single axis movement;
• L: switch assembled horizontal;
• 4(6): 4 steps each direction, (6): contacts arrangement;
• HD39: grip with latch for mechanical zero interlock;
• M2: mounting dimension: 85x85mm, central hole: 63mm.

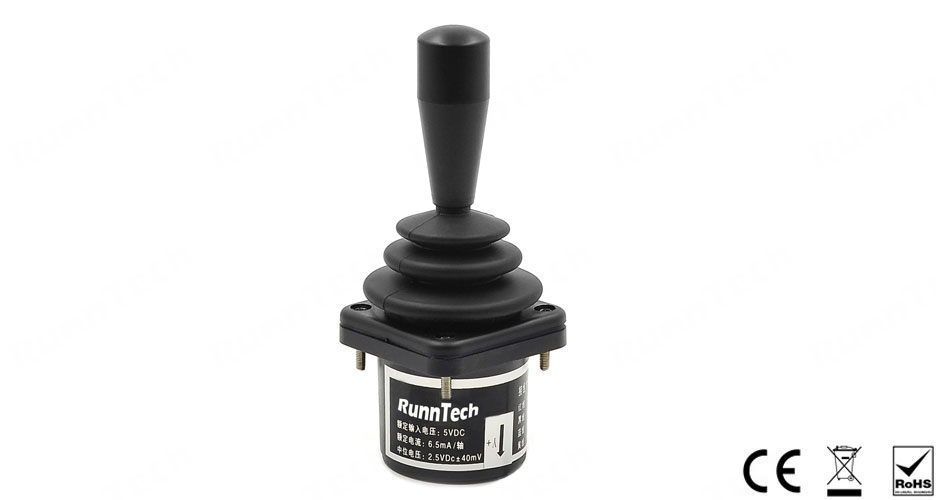

RunnTech Single Axis Hall Effect DC5V Joystick Lever for Ports & Offshore Simulations

Product configuration: RT100-M-1-HV2-02(89)-HD10b2-BT1③G-BS1②R-M7

• RT100: RunnTech 100 series joystick controller;
• M: friction hold operation;
• 1: single axis movement;
• HV2: DC5V, output: 0.5V…0…4.5V;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• HD10b2: grip with deadman & 2 button;
• M7: mounting dimension 85x85mm, central hole: 80x80mm.

RunnTech Single Axis Friction Hold & Lock-in at Center Joystick with Push to Release Grip

Product configuration: RT200-МS-V2(10K)-02(89)-T-M1

• RT200: RunnTech 200 series single axis joy Stick;
• MS: friction hold & Lock-in at centre (zero) position;
• V2: input: DC24V, output: +10V…0…+10V;
• 10K: 10K ohm precision potentiometer;
• 02: 2 normally open contacts in each axis;
• 89: contacts @ -32° to -3° or +3° to +32°;
• T: T shape joystick grip (push to release);
• M1: mounting dimension 56×56mm, central hole: 63mm.

RunnTech 0 to 10V Analog Ouput Friction Operation Joystick for Mining Hoist Machine

Product configuration: RT200-M-1-V5(10K)-03(589)-HD7-BT1R-M1

• RT200: RunnTech 200 series joystick controller;
• M: friction hold operation;
• V5: 24VDC input, 0…+10V DC output;
• 03: 3 closed positions;
• 589: closed at 5: ±3°, 8: 3° to 32°, 9: -3° to -32°;
• HD7: RunnTech joystick grip, top with push button;
• M1: mounting dimension: 56x56mm, central hole: 63mm;
